Large Venue Projector for Exhibitions, Stage Performances & Architectural Visual Presentations
Experience stunning visual performance with the SMX MX-X20000U, a 20,000-lumen WUXGA-resolution laser projector meticulously designed for professional 3D mapping, large-scale projections, and immersive visual experiences. Built with cutting-edge laser projection technology, this high-performance projector delivers exceptional brightness, superior image clarity, and long-lasting reliability, making it the ideal solution for outdoor projections, stage performances, exhibitions, architectural mapping, and other demanding applications.
Ideal Applications
- 3D Projection Mapping: Create dynamic, interactive, and immersive visuals on buildings, landscapes, and unconventional surfaces.
- Live Events & Concerts: Deliver stunning stage projections and immersive backgrounds for concerts, festivals, and corporate events.
- Museums & Exhibitions: Enhance visitor experiences with interactive displays, digital art installations, and stunning exhibition visuals.
- Theme Parks & Entertainment Venues: Provide captivating visual effects for attractions, rides, and entertainment shows.
- Simulation & Training: Ideal for flight simulation, military training, and virtual reality applications requiring high-resolution and high-contrast imagery.
Why Choose the SMX MX-X20000U?
- Ultra-bright 20,000 lumens for large-scale projection
- WUXGA resolution with 4K signal support
- Laser light source with up to 30,000-hour lifespan
- High dynamic contrast ratio of 5,000,000:1
- Motorized interchangeable lenses for flexible installation
- Advanced 3D mapping and edge blending capabilities
- Multiple connectivity options for seamless integration
Edge Blending
Lens Shift
A projector with lens shift enhances installation flexibility, maintains image quality, and simplifies setup, making it an excellent choice for home theaters, business presentations, educational institutions, and large-scale projection applications.
Flexible Lens Options for Custom Installations
The SMX MX-X20000U features motorized interchangeable lenses with a wide throw ratio range of 0.53:1 to 7.5:1, allowing for versatile installation options. Whether ceiling-mounted, floor-standing, or rear-projection, this projector adapts seamlessly to various venue sizes and projection distances, enabling precise image alignment and distortion-free visuals.
| Model# |
MX-EG05ZLM |
MX-EG06ZLM |
MX-EG08ZLM |
MX-EG12ZLM |
MX-EG20ZL |
OL-EG39ZLM |
| Image circle |
Φ34.6 |
Φ35.5 |
Φ37.9 |
Φ37.9 |
Φ37.9 |
Φ37.9 |
| Zoom/Focus |
Motorized |
Motorized |
Motorized |
Motorized |
Motorized |
Motorized |
| F# (Wide-Tele) |
1.85-2.20 |
1.84-2.25 |
1.80-2.24 |
1.80-2.24 |
1.84-2.58 |
1.85-2.42(TBD) |
| f(mm) |
12.0-14.6 |
14.4-19.1 |
19.0-27.6 |
27.7-44.3 |
43.8-86.0 |
86.8-163.5(TBD) |
| Throw Ratio (16:10) |
0.53-0.65 |
0.65-0.87 |
0.86-1.25 |
1.24-2.01 |
1.98-3.95 |
3.95-7.50(TBD) |
| Zoom Ratio |
1.23 |
1.34 |
1.45 |
1.62 |
1.99 |
1.90(TBD) |
| Lens shift H |
±20% |
±20% |
±25% |
±25% |
±25% |
±25% |
| Lens shift V |
±50% |
±55% |
±65% |
±65% |
±65% |
±65% |
| Screen Size |
60-500inch |
60-500inch |
60-500inch |
60-500inch |
60-500inch |
60-500inch |
Main Specifications
| Model# |
MX-X20000U |
| Brightness |
| Brightness (Lumen) |
20,000 |
| Overall Spec |
| Display Panel |
3x1.0" |
| Display Technology |
Liquid Crystal Display |
| Native Resolution |
WUXGA (1920 x 1200) |
| Laser Lifetime Normal mode |
20,000hrs |
| Laser Lifetime ECO mode |
30,000hrs |
| Projection Lens (STD) |
| Lens Model |
MX-EG12ZLM |
| Zoom/Focus |
Motorized |
| Throw Ratio (16:10) |
1.24-2.01 @100inch |
| F |
1.8-2.24 |
| f |
27.7-44.3mm |
| Zoom Ratio |
1.62 |
| Screen size |
60-500 inch |
| Lens Shift V |
±65% |
| Lens Shift H |
±25% |
| Contrast Ratio (Min) |
3,000,000:1 |
| Noise (dB) |
Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity |
TYP:90% |
| Aspect Ratio |
Native:16:10
Compatible: 4:3/16:9/normal/16:6 |
| Terminal (I/O port) |
| Input VGA |
*1 |
| HDMI 1.4(IN) |
*2 |
| USB-A |
*1 |
| USB-B |
*1 (Display) |
| RJ45 |
*1 (Display) |
| DVI-D |
*1 |
| HD BaseT |
*1 |
| Audio in (mini jack,3.5mm) |
*1 (VGA/DVI-D share) |
| DMX512 |
*1 |
| Output HDMI 1.4(OUT) |
*1 |
| Audio out (mini-jack,3.5mm) |
*1 |
| Control RS232C (Input) |
*1 |
| Control RS232C (Output) |
*1 |
| Wired Remote(IN) |
*1 |
| Wired Remote(OUT) |
*1 |
| Other Functions |
| Keystone Correction |
V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction |
| OSD Languages |
26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Farsi |

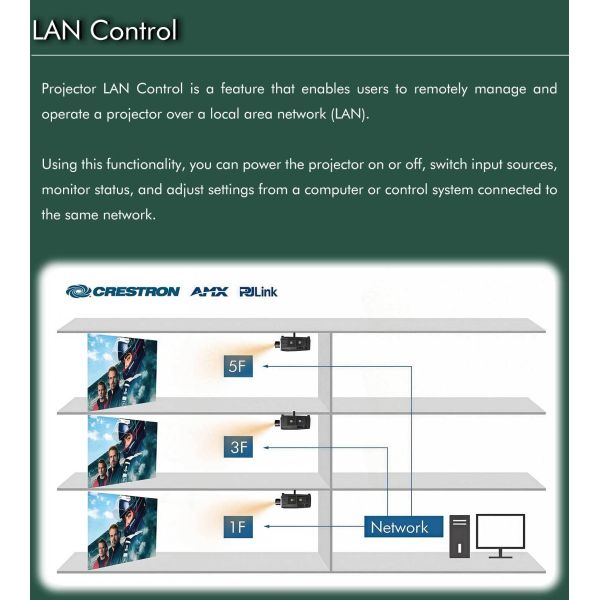

| LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery |
Yes |
| LAN Control-PJ Link |
Yes |
| Computer Signal Input |
VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| 360° projection |
360° Install |
| Edge Blending |
Yes |
| Adjustable brightness |
Yes |
| Dimension & Weight |
| Product Size (WxHxD mm) |
599X240.2X493.8mm (not including lens) |
| Net Weight (KG) |
28.9Kg (not including lens) |
| Accessory |
| Manual Languages |
Chinese, English |
| Standard Accessories |
Power cord (3m, Black), Remote control |
