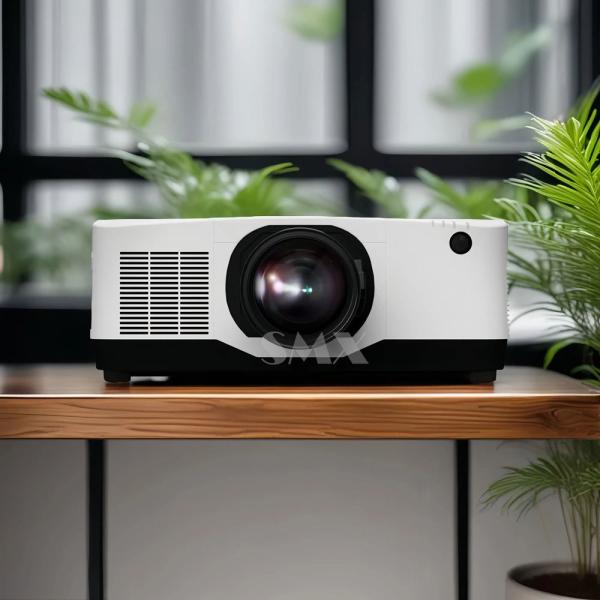

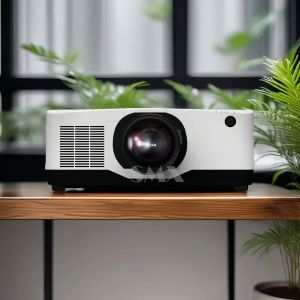

20000 Lumen Large Venue Laser Projector Ultra Bright Compact With 1920 X 1080 Resolution
The 20,000 Lumen Laser Projector is built for high-impact projection in the most demanding environments. Designed to deliver ultra-bright, razor-sharp visuals, this powerhouse projector features an advanced laser light engine and supports WUXGA resolution (depending on model), making it ideal for large venues, auditoriums, outdoor events, and immersive installations.
Whether you're projecting onto massive screens or unconventional surfaces, this projector ensures stunning clarity, vibrant color reproduction, and consistent performance--even in bright ambient light.
Key Features
- Ultra-High Brightness (20,000 Lumens) Exceptional visibility in large venues and well-lit spaces.
- High Resolution WUXGA delivers sharp, detailed images with true-to-life color accuracy.
- Laser Light Source Maintenance-free operation with up to 20,000 hours of consistent brightness and performance.
- Edge Blending & Warping Support: Ideal for projection mapping, curved surfaces, and multi-projector setups.
- Flexible Installation Supports 360° orientation, motorized lens shift, zoom, and a wide range of lens options.
- Advanced Connectivity Compatible with HDBaseT, HDMI, 3G-SDI, and network control systems for seamless integration.
HDBT Connection
LAN Control
Specification
| Model# |
MX-X20000U |
| Brightness(Lumen) |
20,000 |
| Overall Specifications |
| Display Panel |
3x1.0" |
| Display Technology |
Liquid Crystal Display |
| Native Resolution |
WUXGA (1920 x 1200) |
| Laser Lifetime (Normal mode) |
20000hrs |
| Laser Lifetime (ECO mode) |
30000hrs |
| Projection Lens (STD) |
| Lens Model |
MX-EG12ZLM |
| Zoom/Focus |
Motorized |
| Throw Ratio (16:10) |
1.24-2.01 @100inch |
| F |
1.8-2.24 |
| f |
27.7-44.3mm |
| Zoom Ratio |
1.62 |
| Screen size |
60-500 inch |
| Lens Shift V |
±65% |
| Lens Shift H |
±25% |
| Contrast Ratio(Min) |
3,000,000:1 |
| Noise(dB) |
Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| Uniformity |
TYP:90% |
| Aspect Ratio |
Native:16:10
Compatible: 4:3/16:9/normal/16:6 |
Support a variety of optional lenses, flexible installation
A variety of optional lenses are suitable for different projection spaces and solutions to meet the different projection needs of customers.
| Model# |
MX-EG05ZLM |
MX-EG06ZLM |
MX-EG08ZLM |
MX-EG12ZLM |
MX-EG20ZL |
OL-EG39ZLM |
| Image circle |
Φ34.6 |
Φ35.5 |
Φ37.9 |
Φ37.9 |
Φ37.9 |
Φ37.9 |
| Lens Type |
Zoom Lens ST3 |
Zoom Lens ST2 |
Zoom Lens ST1 |
Zoom Lens STD |
Zoom Lens L1 |
Zoom Lens L2 |
| Zoom/Focus |
Motorized |
Motorized |
Motorized |
Motorized |
Motorized |
Motorized |
| F#(Wide-Tele) |
1.85-2.20 |
1.84-2.25 |
1.80-2.24 |
1.80-2.24 |
1.84-2.58 |
1.85-2.42(TBD) |
| f(mm) |
12.0-14.6 |
14.4-19.1 |
19.0-27.6 |
27.7-44.3 |
43.8-86.0 |
86.8-163.5(TBD) |
| Throw ratio(16:10) |
0.53-0.65 |
0.65-0.87 |
0.86-1.25 |
1.24-2.01 |
1.98-3.95 |
3.95-7.50(TBD) |
| Zoom Ratio |
1.23 |
1.34 |
1.45 |
1.62 |
1.99 |
1.90(TBD) |
| Lens shift H |
±20% |
±20% |
±25% |
±25% |
±25% |
±25% |
| Lens shift V |
±50% |
±55% |
±65% |
±65% |
±65% |
±65% |
| Screen Size |
60-500inch |
60-500inch |
60-500inch |
60-500inch |
60-500inch |
60-500inch |
Lens Shift
Lens shift allows you to adjust the projector's image position vertically or horizontally without tilting the unit, preventing distortion (keystone effect) and enabling flexible placement while maintaining image quality. This is especially useful for ceiling mounts or uneven setups.
Ideal Applications
- Large auditoriums and conference halls
- Outdoor projection and public displays
- Museums, domes, and immersive environments
- Houses of worship and performance venues
- Simulation and visualization systems
